1.Features
(1). Industry-leading high-precision performance optimized for speed, rigidity and reliability. With powerful spindle, improved chip discharge performance and the capability to process precision parts with high efficiency.
(2). The bed adopts the whole inverted "T" box structure, table left-right movement, column back-forth movement. The rib layout is appropriate, have high static and dynamic stiffness and accuracy retention.
(3). Standard 1-pc table, optional 2-pc table.
(4). Table indexing 1°. B-axis positioning accuracy 10 arcsec, re-positioning accuracy 2 arcsec.
(5). The main transmission adopts spindle reducer (two speeds) directly connected structure, large torque, high efficiency.
(6). Standard 4 spiral chip conveyors (X and Z direction each 2) and 1 chain chip conveyors. High efficient iron chip collection.
(7). Spindle speed 6000rpm on request.
(8). Optionals: ZF gear box, chip flushing, linear scales, CTS, oil cooling, water gun, tool pre-setter, probe system, oil mist collector, etc.
2.Main specifications
DESCRIPTION | UNIT | HMC-1200 |
Spindle taper |
| BT50 |
Spindle speeds | rpm | 3000 |
Spindle motor power | kW | 22/30 |
Table size | mm | 1200x1200 |
Table travel (X,Y,Z) | mm | 2000x1500x1300 |
T-slot (No./width/distance) | mm | 7-22-160 |
Table load | kg | 5000 |
Distance from spindle center to table surface | mm | 0-1500 |
Distance from spindle end face to table center | mm | 350-1650 |
Rapid feed speed (X,Y,Z) | m/min | 18 |
ATC system | T | 32 |
Positioning accuracy | mm | 0.02 |
Re-positioning accuracy | mm | 0.008 |
Overall dimensions | mm | 7300x5050x4600 |
Weight | T | 26 |

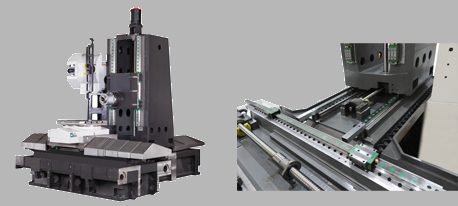

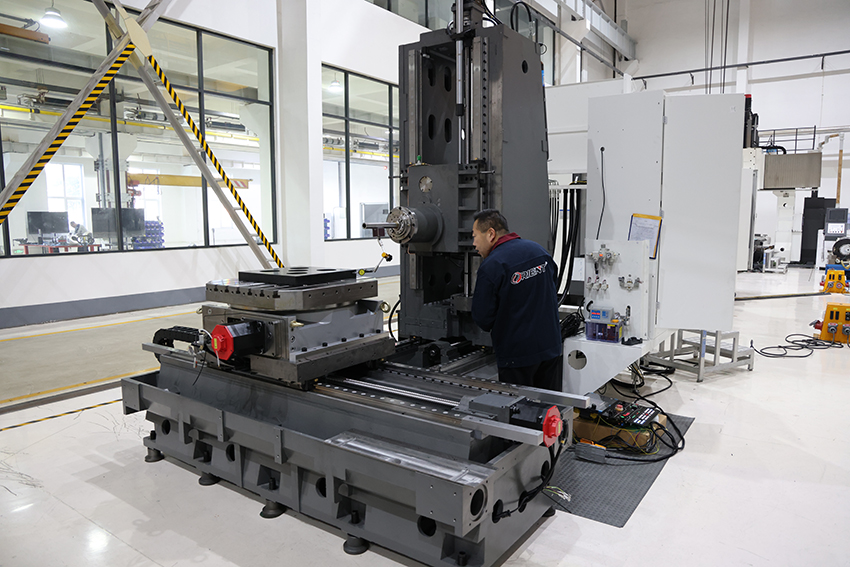

3.Machine photos
