CNC Horizontal Machining Center (Inverted T)
1.Features
1. High precision, speed, rigidity and reliability. Powerful spindle, excellent chip removal, high machining efficiency.
2. Integral inverted T‑type box structure with optimized ribs, high static/dynamic rigidity and stable accuracy.
3. Single table standard; reciprocating dual pallet optional.
4. Table indexing: 1°. B‑axis: positioning 10 arcsec, repeatability 2 arcsec.
5. Two‑speed spindle reducer direct drive, high torque and efficiency.
6. Standard: 4 screw + 1 chain chip conveyors (optional), high‑efficiency chip removal.
7. Spindle speed 6000 rpm available on request.
8. Options: ZF gearbox, chip flushing, linear scales, coolant through spindle, oil cooler, water gun, tool setter, probe, oil mist collector.
2.Main specifications
MODEL | UNIT | HMC-630 | HMC-800 | HMC-1000 | HMC-1200 |
Spindle taper | BT50 | BT50 | BT50 | BT50 | |
Spindle speeds | rpm | 3000 | 3000 | 3000 | 3000 |
Spindle motor power | kW | 15/18.5 | 15/18.5 | 22/26 | 22/26 |
Table size | mm | 630x630 | 800x800 | 1000x1000 | 1200x1200 |
Table travel (X,Y,Z) | mm | 1000x800x800 | 1250x1000x1000 | 1600x1200x1300 | 2000x1500x1300 |
T-slot (No./width/distance) | mm | 5-18-125 | 5-22-160 | 7-22-125 | 7-22-160 |
Table load | kg | 1200 | 2000 | 3000 | 5000 |
Distance from spindle center to table surface | mm | 100-900 | 80-1080 | 50-1250 | 0-1500 |
Distance from spindle end face to table center | mm | 150-950 | 150-1150 | 350-1650 | 350-1650 |
Rapid feed speed (X,Y,Z) | m/min | 24 | 24 | 18 | 18 |
ATC system | T | 24 | 30 | 32 | 32 |
Positioning accuracy | mm | 0.010 | 0.010 | 0.015 | 0.02 |
Re-positioning accuracy | mm | 0.005 | 0.006 | 0.01 | 0.01 |
Overall dimensions | mm | 5800x3700x3170 | 6000x4000x3600 | 7160x4760x4100 | 7300x5050x4600 |
Weight | T | 15 | 17 | 24 | 26 |

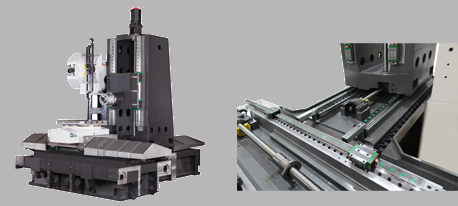

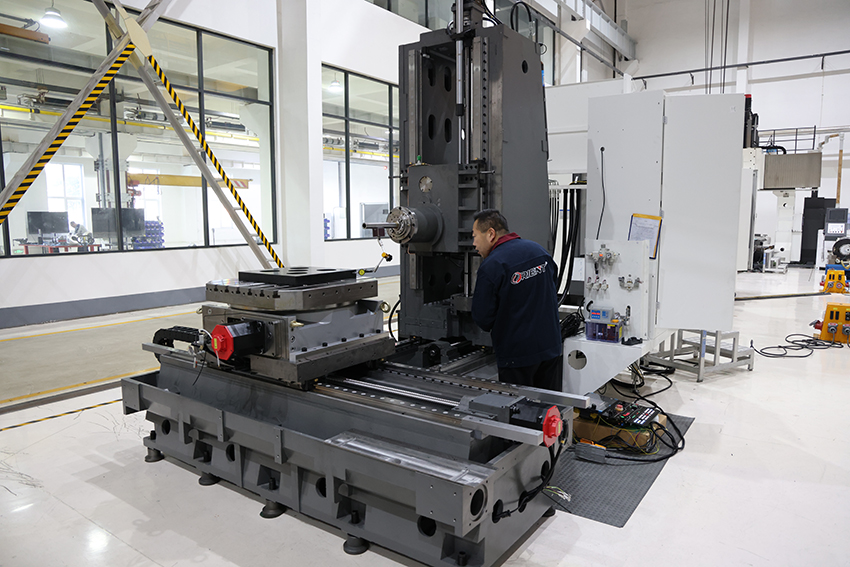

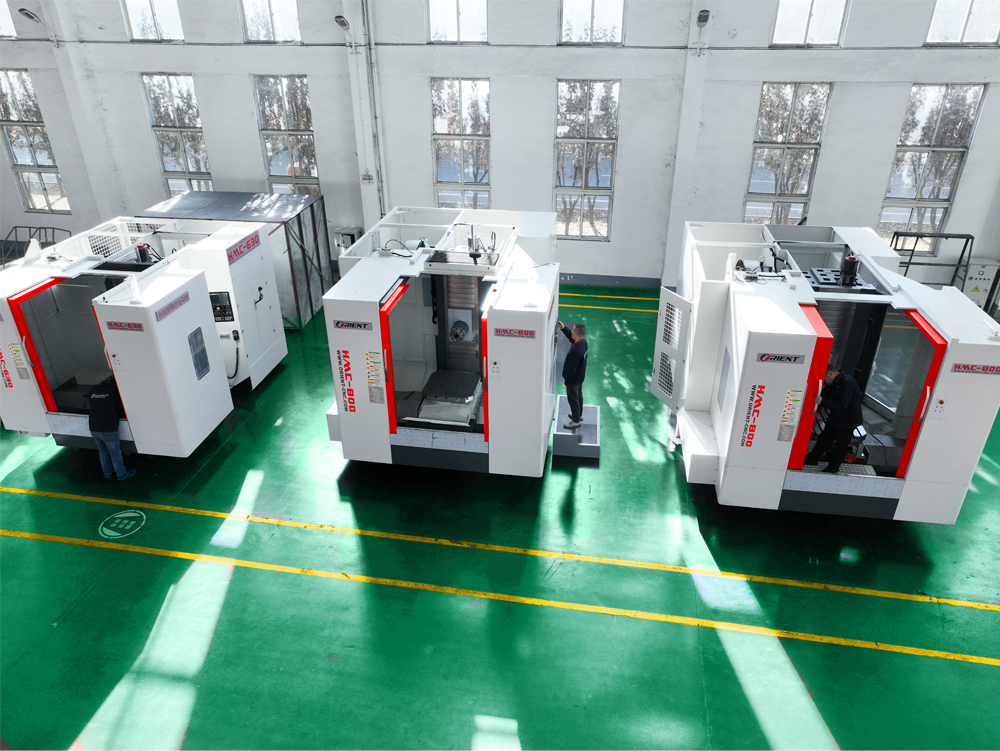

3.Machine photos
