1.Features
(1). Industry-leading high-precision performance optimized for speed, rigidity and reliability. With powerful spindle, improved chip discharge performance and the capability to process precision parts with high efficiency.
(2). The bed adopts the whole positive "T" box structure, table back-forth movement, column left-right movement. The rib layout is appropriate, have high static and dynamic stiffness and accuracy retention.
(3). Double pallet (2-pc) exchange table. Table indexing 1°. B-axis positioning accuracy 10 arcsec, re-positioning accuracy 2 arcsec.
(4). Direct drive spindle to achieve large torque output and improve the workpiece processing efficiency.
(5). 2 spiral chip conveyors and 1 chain chip conveyor. High efficient iron chip collection.
(6). Optional: ZF gear box, Chip flushing, Linear scale, CTS, Oil cooling, Water gun, Tool pre-setter, Probe system, Oil mist collector, etc.
2.Main specifications
DESCRIPTION | UNIT | HMCT-1000 |
Spindle taper |
| BT50 |
Spindle speeds | rpm | 3000 |
Spindle motor power | kW | 22/30 |
Table size | mm | 1000X1000 |
Table travel (X,Y,Z) | mm | 1600x1200x1300 |
T-slot (No./width/distance) | mm | 7-22-125 |
Table load | kg | 3000 |
Distance from spindle center to table surface | mm | 20-1250 |
Distance from spindle end face to table center | mm | 350-1650 |
Rapid feed speed (X,Y,Z) | m/min | 18 |
ATC system | Piece | 40 |
Positioning accuracy | mm | 0.010 |
Re-positioning accuracy | mm | 0.005 |
Overall dimensions | mm | 7160x4760x4100 |
Weight | T | 24 |

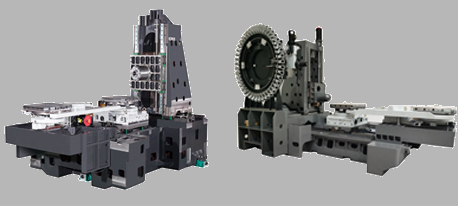

3. Machine photos
