CNC Vertical Machining Center
1.Features
(1). Advanced FEM analysis strengthens the structure while reduces the weight to provide the best cutting rigidity, and the main parts are made of Meehanite castings, stable structure and permanent quality.
(2). Compact design, complete function and small footprint, suitable for metalworking and teaching insudstries.
(3). Drilling dia.14mm, tapping M12, milling 63mm.
(4). 3-axis linear guideways, ensure high precision machining of the workpiece.
(5). It can complete milling, boring, drilling, tapping and other processes under one clamp, suitable for automobile parts, plastic machinery, construction machinery and other fields.
2.Main specifications
DESCRIPTION | UNIT | VMC-440 | |
Table | Size | mm | 870x260 |
Max. load | kg | 200 | |
T-slot size | mm | 3-16-80 | |
Working capacity | X,Y,Z-axes travel | mm | 420x300x460 |
Distance from spindle nose to table surface | mm | 60-520 | |
Distance from spindle center to column surface | mm | 370 | |
Spindle | Taper | BT30 | |
Speed | r/min | 8000 | |
Motor power | kW | 2.2/3.7 | |
Feeding | Rapid feed | m/min | 30/30/15 |
Cutting speed | mm/min | 1-10000 | |
Tool magazine | Capacity | T | 8 |
Max. tool dia. | mm | Φ63 | |
Tool type | Umbrella | ||
Max. tool weight | kg | 8 | |
Accuracy | Positioning accuracy | mm | ±0.016 |
Re- positioning accuracy | mm | ±0.008 | |
Others | Overall dimensions | mm | 1860x1520x2060 |
Weight | kg | 1100 | |
3. Main configurations
NO. | ITEM | BRAND | ORIGIN |
1 | Control system | SIEMENS/GSK/FANUC | |
2 | Ball screw | SHAC | Taiwan |
3 | Bearing | NSK | Japan |
4 | Linear guideway | SHAC | Taiwan |
5 | Automatic lubrication | China | |
6 | Coupling | China | |
7 | Spindle | China | |
8 | Main electric parts | Siemens/Schneider | |
9 | Cooling motor | China | |
10 | Tool magazine | AIMACH | Taiwan |

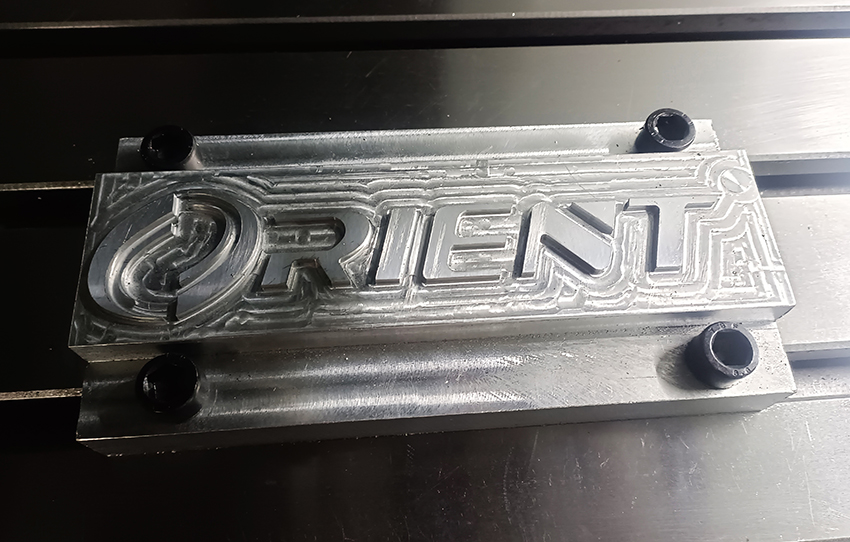

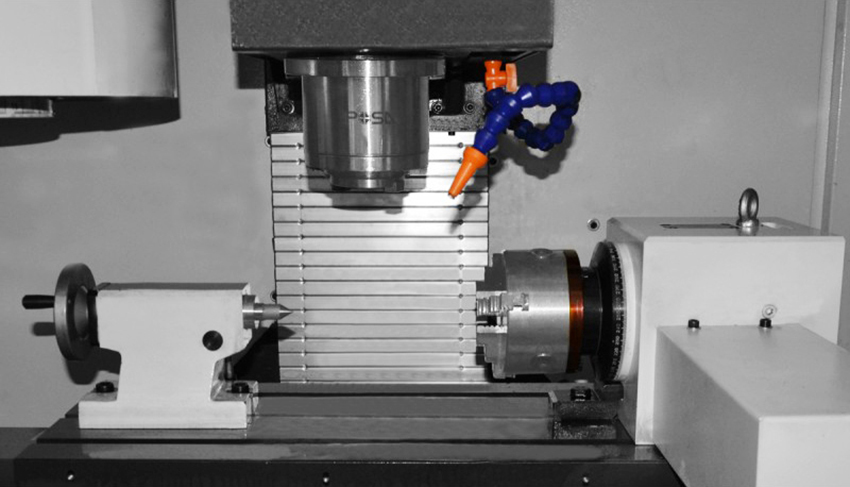

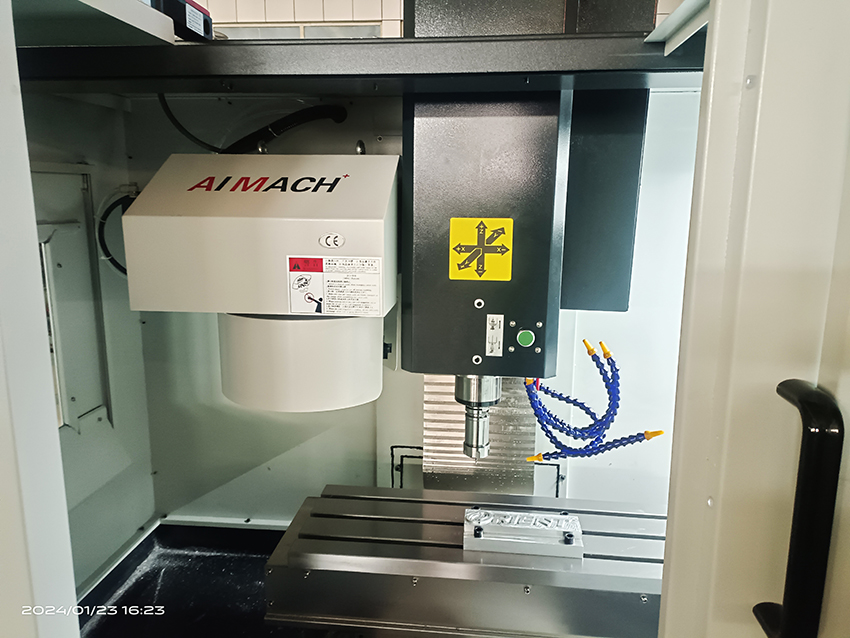

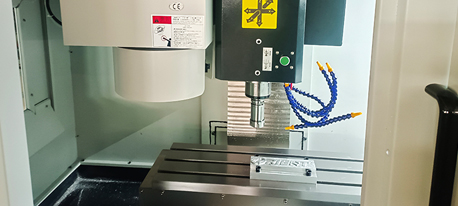

4. Machine photos
