1. Compact, fast and powerful drilling tapping center – your ultimate solution for precision manufacturing.

   This is a high-speed, lean-style and unique designed drilling tapping center, with compact footprints that make very efficient use of valuable workshop floor space.

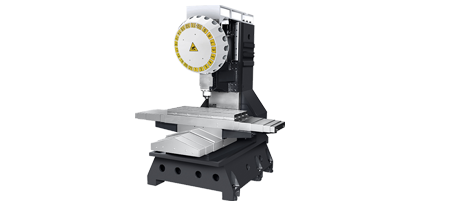

2. The one-piece MEEHANITE casting bed and Y-shaped column provide a solid support to ensure ultimate dynamic accuracy.

3. High accuracy, low vibration direct-driven spindle design, providing 12,000/15,000/20,000rpm spindle speed to fulfill variety of precision processing requirements.

4. The motors and spindles use high rigidity coupling to reduce vibration caused by the lateral force from the spindle which ensures working      stability and accuracy.

5. 3 axes feeding system use absolute servo direct-driven motor to provide powerful thrust and fast acceleration and deceleration. This can efficiently lower motor load and reduce heat while ensuring maximum performance and accuracy.

6. 3 axes HIWIN/ Rexroth /THK roller linear guideways.

7. 3 axes P4 bearings, HIWIN/PMI C3 ball screws.

8. High performance ATC system with synchronous unclamping type tools changer provides fast and steady tool change capability.

9. 750W coolant pump and 750W chip flushing pump system washes the chips to the chip collector at the back of the machine for manual chip removal.

10. Fully enclosed work area with stainless steel protection plates.

11. Control systems: Mitsubishi M80B, Siemens 828D, Fanuc 0IMF Plus, Syntec 22MA.

12. Optional: the 4th axis or the 5th axis rotary table. And 5-axis linkage models are available.

13. Raised column on request.

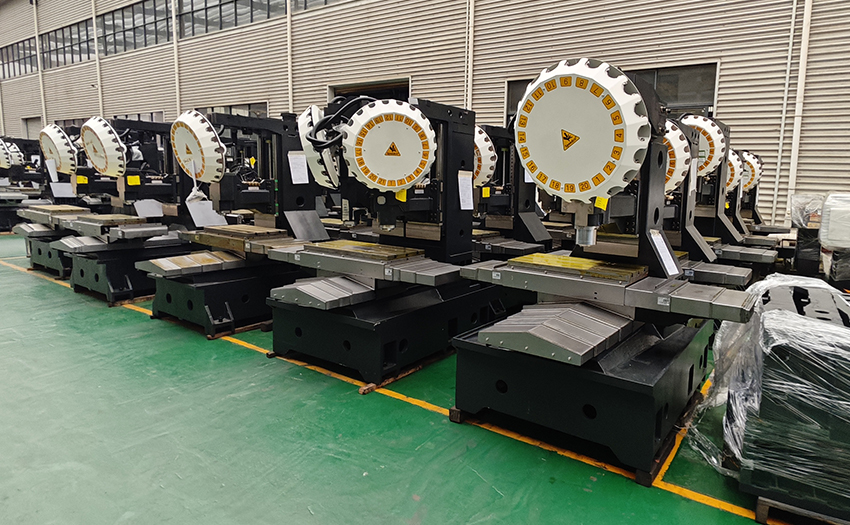

14. Frame/body is available.

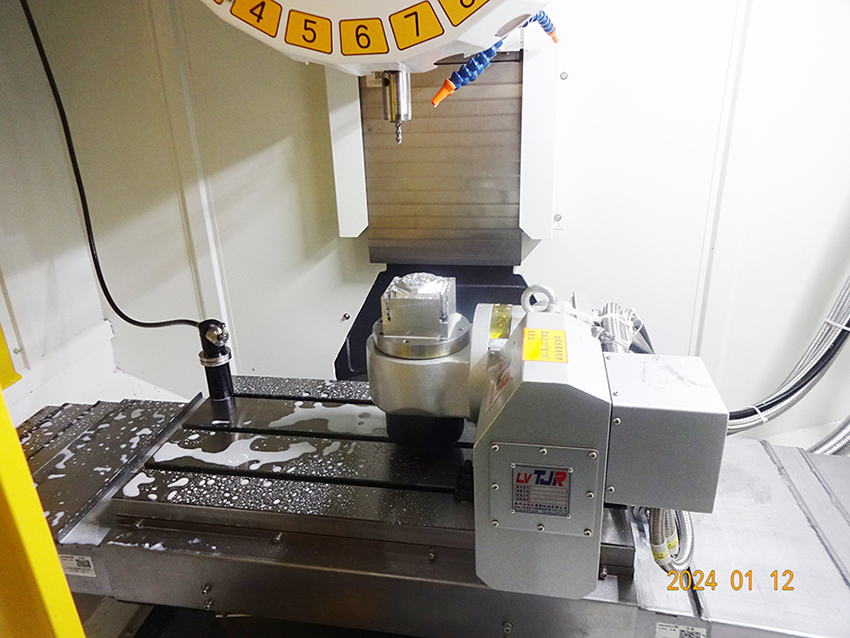

The 4^th axis rotary table

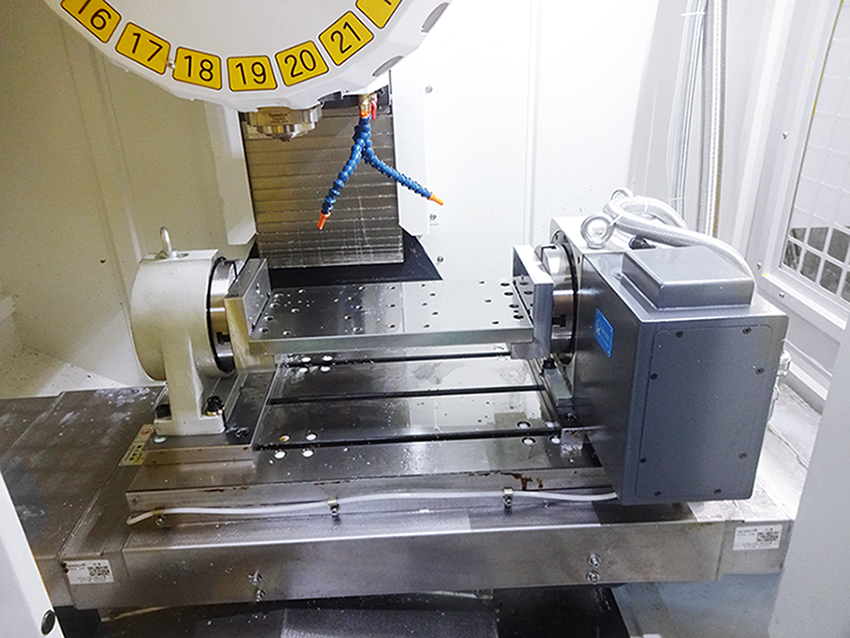

The 5^th axis rotary table
