CNC High-speed Double Column Machining Center
1.Features
(1)High performance for machining sheet metal parts, box parts and molds.
(2). BBT40-φ150mm direct drive long nose spindle, 12000rpm or 15000rpm, it can meet the needs of different machining workpieces.
HSK-A63 φ150mm direct drive spindle, 15000rpm, high speed, high efficiency.
(3). X,Y,Z-axes HIWIN/PMI/THK roller linear guideways.
(4). X,Y,Z-axes P4 bearings, HIWIN/PMI C3 ball screws.
(5). Raised column 100/150/200mm is optional.
(6). Z-axis with 4 linear guideways are available.
(7). Z-axis counterweight on request.
2. Main specifications
DESCRIPTION | UNIT | GMC-1614 | |
Spindle taper | BBT40 | HSK-A63 | |
Spindle speed | rpm | 12000 or 15000 | 15000 |
Spindle motor | kW | 7.5-11 | |
Table size | mm | 1700x1200 | |
Table travel | mm | 1600x1300x600 | |
T-slot | mm | 7-22-150 | |
Table load | kg | 3000 | |
Distance of two columns | mm | 1400 | |
Distance from spindle center to column guideway | mm | 380 | |
Distance from spindle nose to table surface | mm | 200-800 | |
Rapid feed (X,Y,Z) | m/min | 15,18,18 | |
Cutting speed | mm/min | 1-10000 | |
Tool station (ATC) | T | 24 | |
Overall dimensions | mm | 4449x4028x3200 | |
Weight | T | 13.5 | |

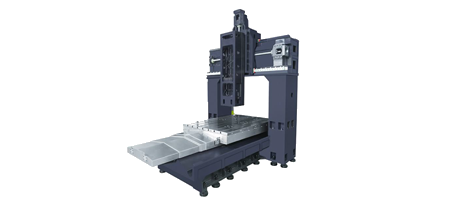

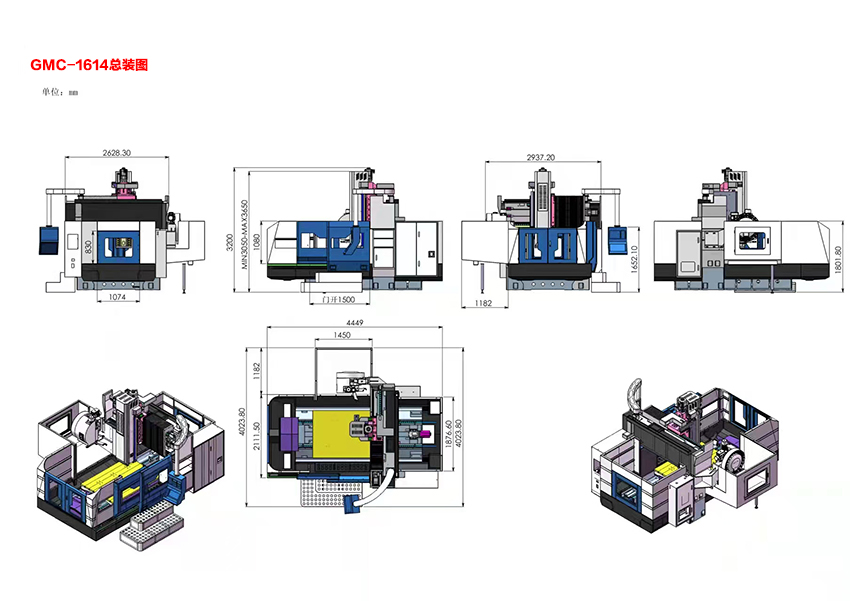

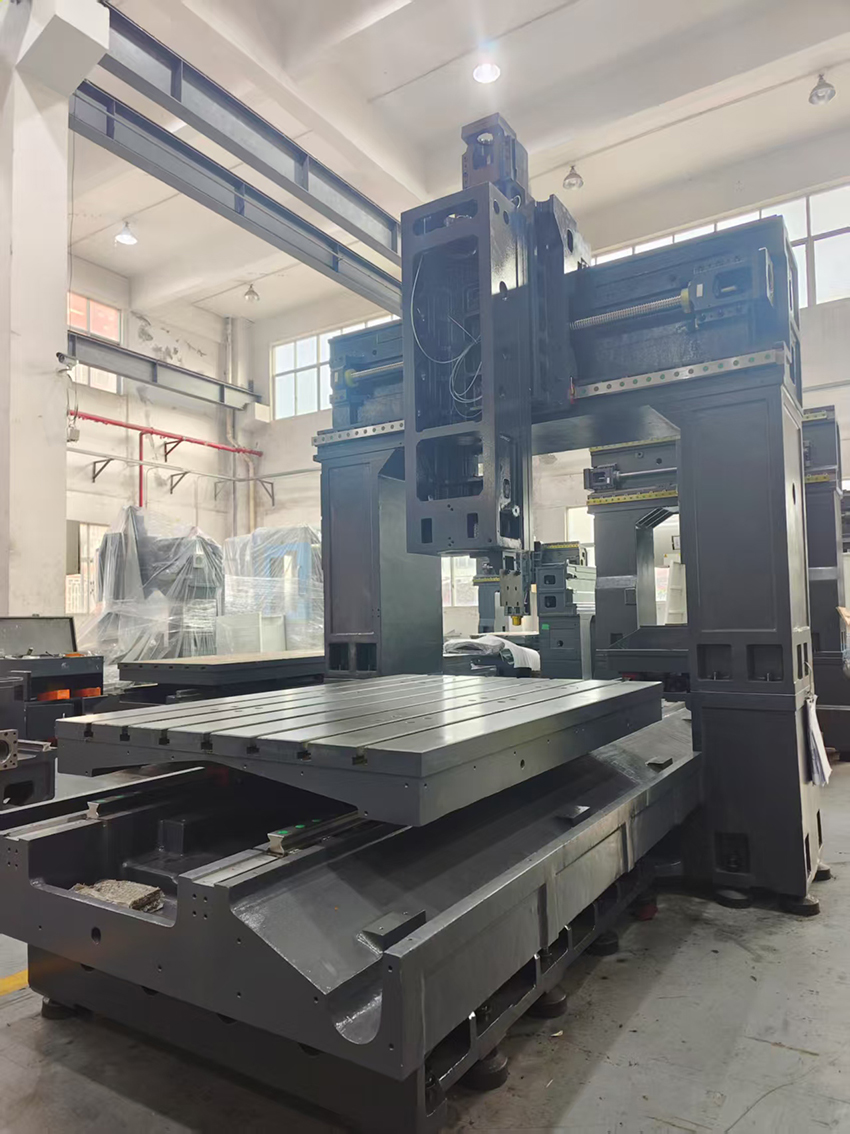

3.Machine photos
