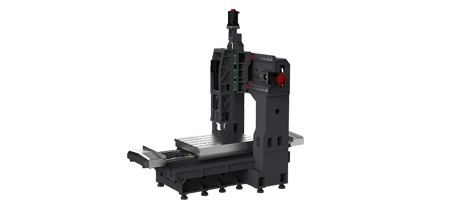

CNC High-speed Double Column Machining Center
1.Features
1.High speed and high performance, ideal for machining sheet metal parts, box-type parts and molds.
2.BBT40 φ150 mm direct-drive long-nose spindle, 12000 rpm or 15000 rpm, suitable for various machining requirements.
HSK-A63 φ150 mm direct-drive spindle, 15000 rpm, for high-speed and high-efficiency machining.
3.X/Y/Z axes equipped with HIWIN/PMI/THK roller linear guideways.
4.X/Y/Z axes adopt P4 class precision bearings and HIWIN/PMI C3 class ball screws.
5.Column height can be raised by 100/150/200 mm.
6.Z-axis can be configured with 4 linear guideways.
7.Z-axis counterweight system is available upon request.
2.Main specifications
MODEL | UNIT | GMC-1310 | GMC-1714 | GMC-2012 | GMC-2016 | |
Spindle taper | BBT40/HSK-A63 | BBT40/HSK-A63 | BBT40/HSK-A63 | BBT40 | BT50 | |
Spindle speed | rpm | 12000/15000 | 12000/15000 | 12000/15000 | 12000 | 8000 |
Spindle motor | kW | 7.5/11 | 7.5/11 | 7.5/11 | 7.5/11- | 15/18.5 |
Table travel (X,Y,Z) | mm | 1300x1000x500 | 1700x1300x500 | 2000x1200x500 | 2100x1650x700 | |
Table size | mm | 1300x900 | 1700x1000 | 2100x1000 | 2100x1400 | |
Table load | T | 1.2 | 2 | 3 | 4 | |
Rapid feed (X,Y,Z) | m/min | 15/18/18 | 20/20/20 | 20/20/20 | 10/15/15 | |
Distance of two columns | mm | 1030 | 1200 | 1200 | 1650 | |
Distance from spindle to table | mm | 150-650 | 180-680 | 180-680 | 130-830 | |
Tool magazine (ATC) | T | 24 | 24 | 24 | 24 | |
Overall dimensions | mm | 4060x3712x3350 | 4660x4308x5357 | 5250x2250x2700 | 5360x4065x3800 | |
Weight | T | 8.8 | 9.8 | 10 | 16.5 | |

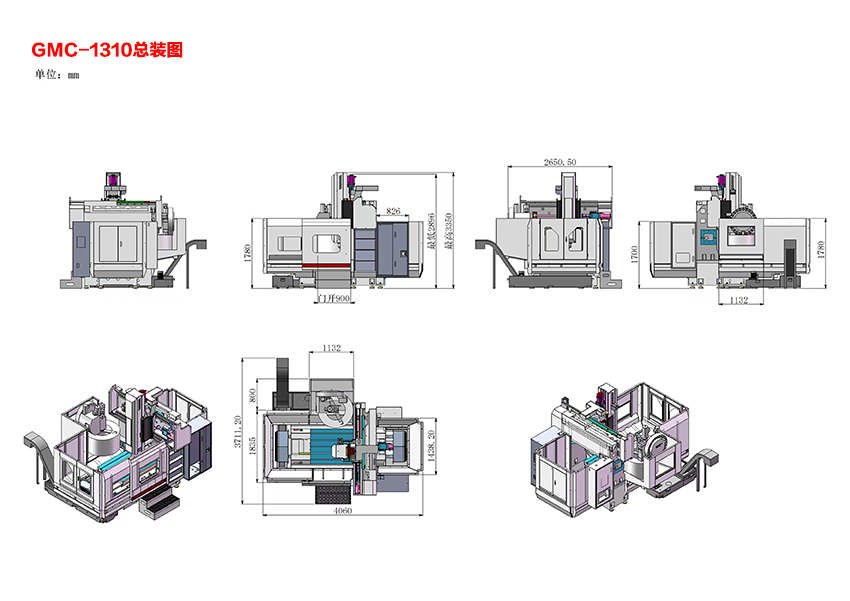

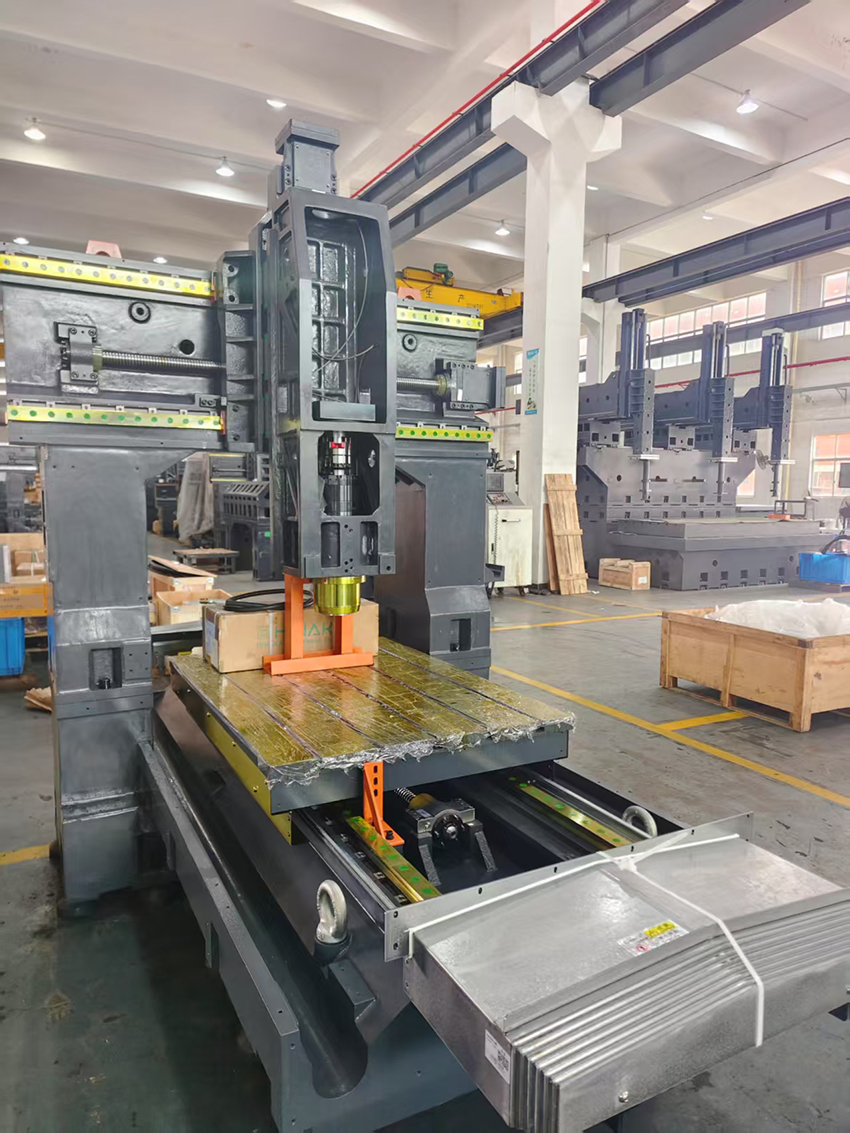

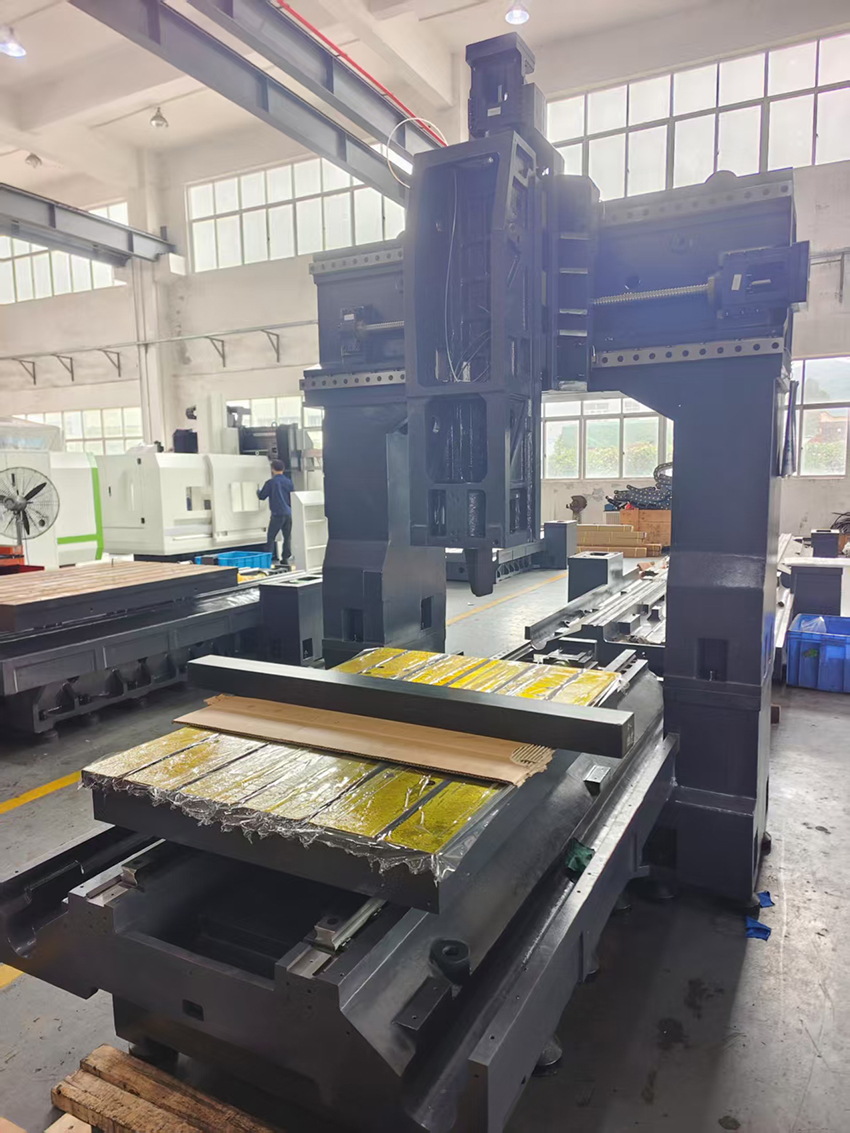

3.Machine photos
